How Figma Dev Mode Improves Collaboration Between Designers and Developers

Working closely with the design team from the very beginning is one of the most important steps to ensure quality and meet deadlines. When both teams start on the same level, it becomes easier to reproduce designs accurately in code. Using Figma to create a basic style guide and setting up reusable components can significantly improve efficiency and quality in both design and development. We will explore how Figma Dev Mode simplifies the design-to-code workflow, especially for frontend developers, and provide some examples to illustrate the process.

The importance of early collaboration

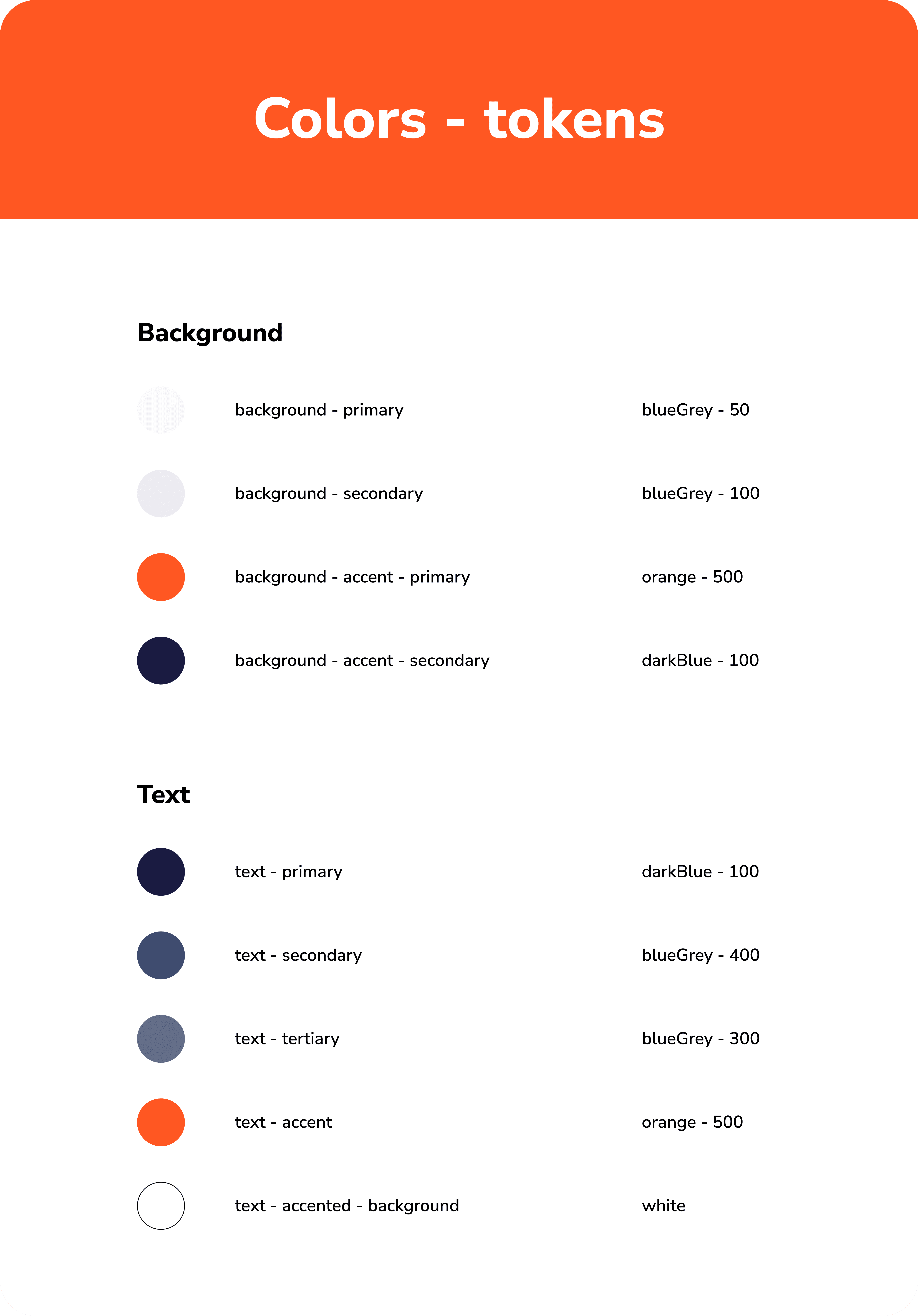

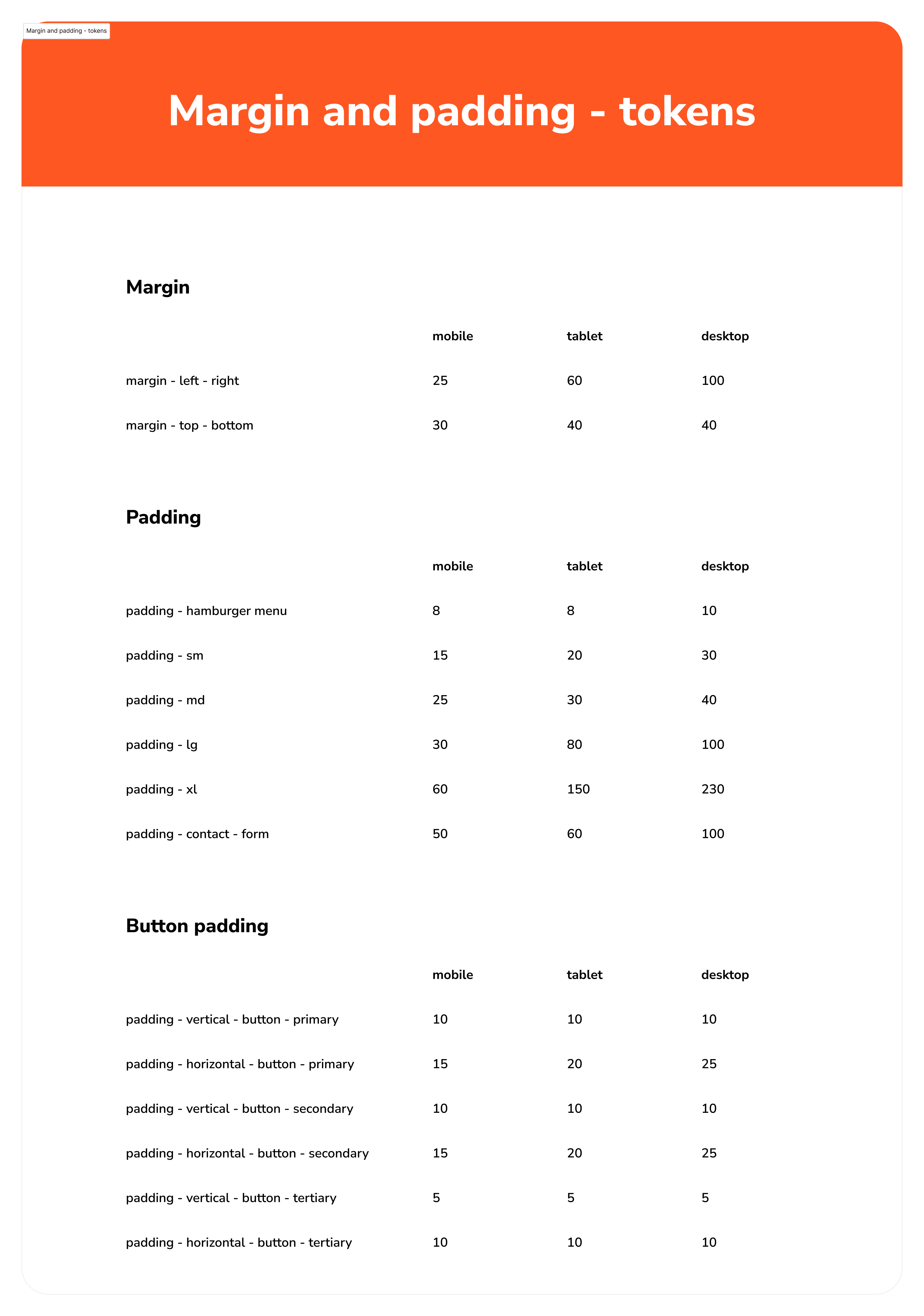

Starting a project with the design team on the same page as the frontend development team creates a foundation that benefits the entire project. When designers create the basic style guide in Figma—which can later expand—and developers implement it in code, the overall workflow becomes smoother. This collaboration ensures that:

• Consistency: Design tokens, colors, fonts, and spacing remain consistent between the design files and the final code.

• Efficiency: Developers can reuse components and focus on building functionality rather than spending extra time translating designs.

• Quality: Both the design and code are held to a consistent standard, making it easier to maintain the project as it grows.

By working together from the start, designers and developers can agree on using an atomic design approach, where reusable components are the building blocks of the application. This approach streamlines updates and changes throughout the project lifecycle.

Atomic design and reusable components

Atomic design is a methodology that breaks down a user interface into its smallest parts (atoms), which can then be combined to form more complex structures. This method benefits both designers and developers by:

• Simplifying the design system: Each element is built from basic building blocks, making it easier to maintain consistency.

• Improving reusability: Once a component is designed and coded, it can be reused across the application, reducing redundancy.

• Enhancing collaboration: Clear definitions of components help both teams understand how individual parts fit together in the final product.

For example, a simple component might consist of an image and a block of text. Designers can create these elements in Figma, and with reusable components in mind, developers can implement them consistently throughout the project.

What is Figma Dev Mode?

Figma Dev Mode is a feature introduced by Figma that enhances the handoff between designers and developers. It provides developers with access to design specifications, assets, and code snippets generated directly from the design. This mode is especially useful for Figma for developers who want to minimize the gap between design and implementation.

Key features of Figma Dev Mode

• Code generation: Designers can create components in Figma, and Dev Mode generates code that developers can copy directly into their projects. The code may include HTML, CSS, or even a React component.

• Design inspection: Developers can inspect components to see measurements, styles, and other details.

• Asset extraction: Images, icons, and other assets can be easily extracted from the design file.

This integration of design and development tools simplifies the transition from design to code, ensuring that the final product closely matches the intended design.

How Figma Dev Mode works

When designers use Figma to build their components, Figma Dev Mode provides a live view of the design specifications. Here is a step-by-step overview of how it works:

1. Component creation: Designers build components in Figma using standard practices and predefined style guides.

2. Activate Dev Mode: Developers switch to Dev Mode within Figma. If you ever wonder how to get out of dev mode figma, the option is available within the same settings where you enable it.

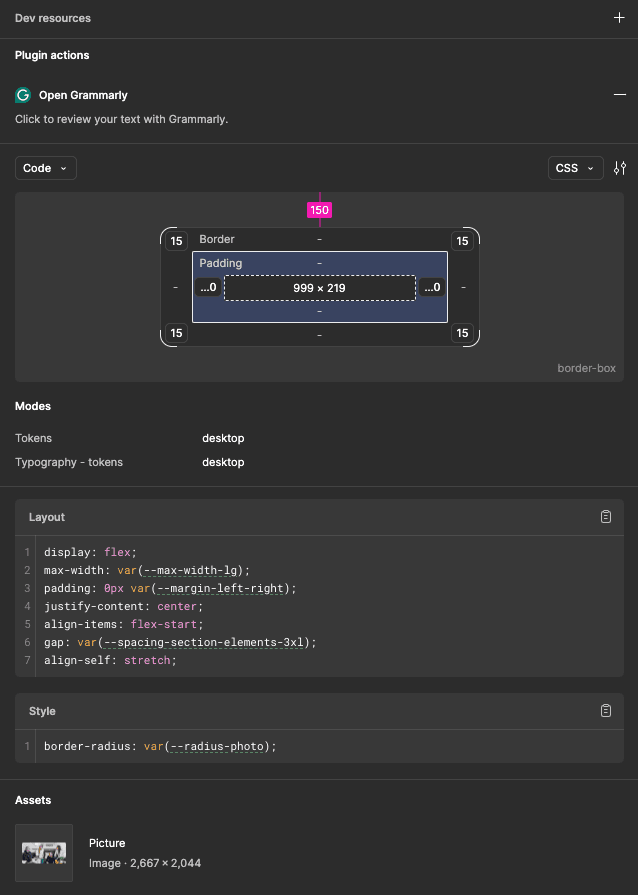

3. Inspect elements: In Dev Mode, developers can click on any element to see detailed specifications like dimensions, colors, and typography.

4. Copy code: Figma generates code snippets for the selected element. This code can be in HTML, CSS, or JavaScript frameworks like React.

5. Integration: Developers copy the code and integrate it into their projects, ensuring that the design is implemented accurately.

Example: image and text component

Imagine you have a component in Figma that displays an image alongside a text description. In Figma, the designer sets the image properties (such as width, height, and border-radius) and the text properties (font size, color, margin).

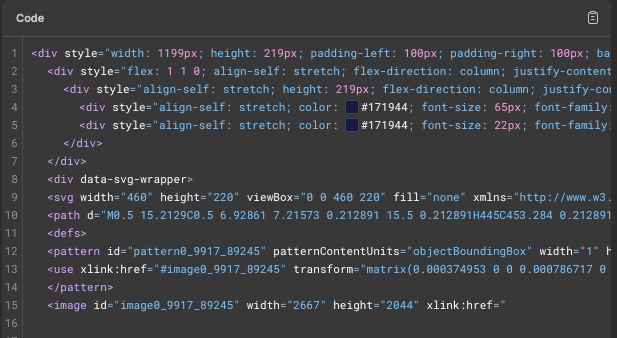

In Figma Dev Mode, the developer might see HTML generated code that looks similar to the following:

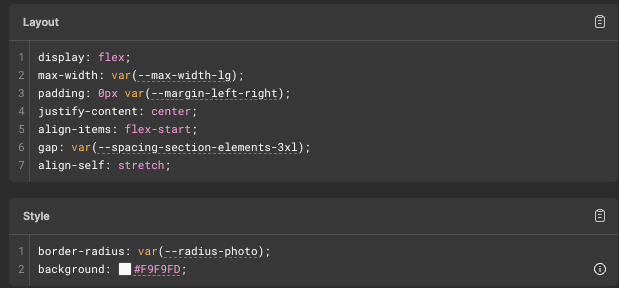

Or very useful CSS generated code:

This simple example demonstrates how Figma Dev Mode can provide code that mirrors the design. Developers can copy this HTML and CSS code directly into their project files, ensuring that the component renders as designed.

React code example

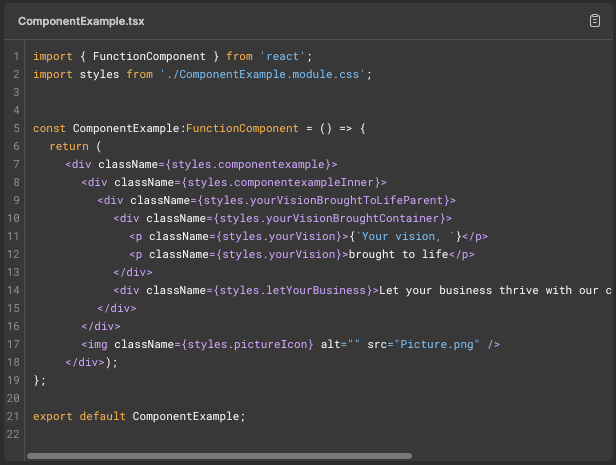

For projects using React, Figma Dev Mode can also generate a React component. The following code snippet is an example of how the same component might look:

In this React example, the component structure remains consistent with the HTML version. The styling is applied via an imported CSS file. This approach allows developers to integrate the component seamlessly into larger React applications.

While I've just showed you some examples, there are many more option for other technologies.

Benefits for developers using Figma Dev Mode

For developers, Figma Dev Mode provides several benefits that simplify the design-to-code workflow:

1. Direct code access: Developers can copy generated code without the need to translate design specifications manually. This reduces errors and saves time.

2. Consistency: With auto-generated code that matches the design specifications, the risk of inconsistencies between design and implementation is minimized.

3. Rapid prototyping: Developers can quickly build prototypes using components directly generated from Figma, allowing for faster iterations and feedback cycles.

4. Documentation: The generated code serves as a form of documentation, outlining the design specifications in code format. This is particularly useful for large teams where clear communication between designers and developers is essential.

By using tools like Figma Dev Mode, teams can maintain a tighter feedback loop between design and code, ultimately resulting in a more efficient development process.

Integrating Figma Dev Mode into your workflow

To get the most out of Figma Dev Mode, consider the following best practices:

1. Establish a common style guide

• Designers and developers should work together to create a shared style guide in Figma. This guide should include color palettes, typography, spacing, and component guidelines.

• A well-defined style guide ensures that the code generated by Figma Dev Mode aligns with the design system used throughout the project.

2. Regular sync-ups

• Schedule regular meetings or check-ins between designers and developers. This helps in addressing any discrepancies between the design and the generated code early on.

• Use these sync-ups to review components, discuss any necessary adjustments, and ensure that both teams are aligned on the implementation.

3. Utilize version control

• As with any code, ensure that the components generated from Figma are integrated into your version control system (e.g., Git). This allows you to track changes and collaborate effectively within the development team.

• Version control can also help in managing iterations of the design system as it evolves.

4. Feedback loop

• Encourage developers to provide feedback to designers on how the generated code works in practice. This feedback can be used to refine the design specifications or adjust the component structure.

• A strong feedback loop ensures that the final product is both visually accurate and functionally robust.

5. Training and documentation

• Make sure that all team members are familiar with Figma Dev Mode and how to use it effectively. This may involve creating internal documentation or hosting training sessions.

• Detailed documentation on how to switch modes, inspect components, and integrate generated code can be beneficial, especially for new team members.

Conclusion

Using Figma Dev Mode has proven beneficial for teams that adopt an atomic design approach and emphasize reusable components. Whether you are using plain HTML/CSS or modern frameworks like React and many more, Figma Dev Mode helps ensure that the final product closely matches the original design intent.

Figma Dev Mode enables developers to accelerate the development process when needed, but it still requires experience to use effectively and efficiently. While it simplifies design handoff and code generation, a solid understanding of development principles is essential to properly integrate and optimize the generated code within a project.

By establishing a strong collaboration between designers and developers, and by leveraging tools like Figma Dev Mode, teams can create products that are both visually appealing and technically robust. Start integrating Figma Dev Mode into your workflow today and experience the benefits of a streamlined design-to-code process.
